Name

curveTangent()

Examples

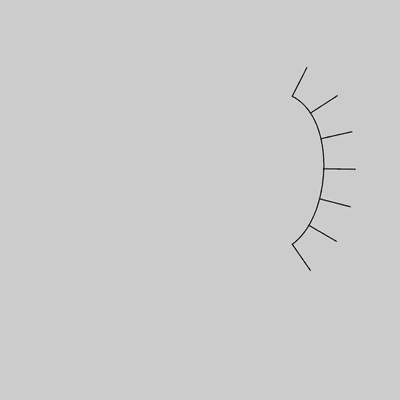

example pic
noFill();
curve(5, 26, 73, 24, 73, 61, 15, 65);
int steps = 6;
for (int i = 0; i <= steps; i++) {
  float t = i / float(steps);
  float x = curvePoint(5, 73, 73, 15, t);
  float y = curvePoint(26, 24, 61, 65, t);
  //ellipse(x, y, 5, 5);
  float tx = curveTangent(5, 73, 73, 15, t);
  float ty = curveTangent(26, 24, 61, 65, t);
  float a = atan2(ty, tx);
  a -= PI/2.0;
  line(x, y, cos(a)*8 + x, sin(a)*8 + y);
}
Description Calculates the tangent of a point on a curve. There's a good definition of tangent on Wikipedia.
Syntax
curveTangent(a, b, c, d, t)
Parameters
a float: coordinate of first point on the curve
b float: coordinate of first control point
c float: coordinate of second control point
d float: coordinate of second point on the curve
t float: value between 0 and 1
Returnsfloat
Relatedcurve()
curveVertex()
curvePoint()
bezierTangent()
