Name

strokeJoin()

Examples

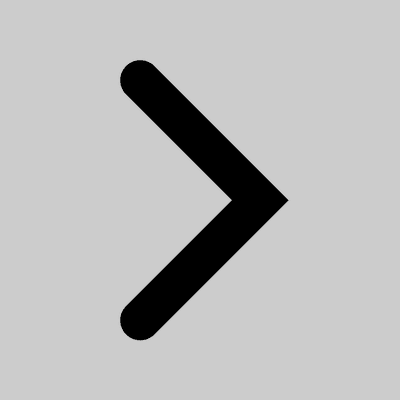

example pic
noFill();
strokeWeight(10.0);
strokeJoin(MITER);
beginShape();
vertex(35, 20);
vertex(65, 50);
vertex(35, 80);
endShape();

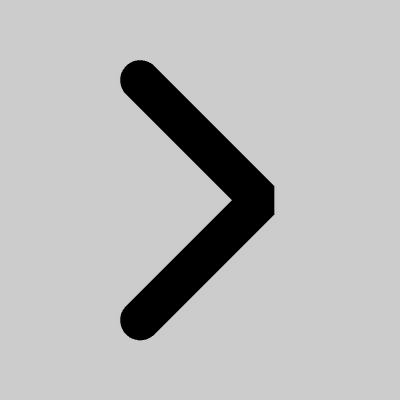

example pic
noFill();
strokeWeight(10.0);
strokeJoin(BEVEL);
beginShape();
vertex(35, 20);
vertex(65, 50);
vertex(35, 80);
endShape();

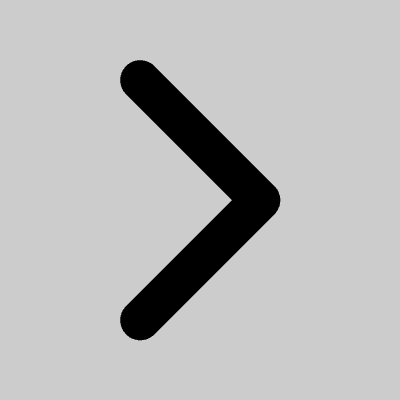

example pic
noFill();
strokeWeight(10.0);
strokeJoin(ROUND);
beginShape();
vertex(35, 20);
vertex(65, 50);
vertex(35, 80);
endShape();
Description Sets the style of the joints which connect line segments. These joints are either mitered, beveled, or rounded and specified with the corresponding parameters MITER, BEVEL, and ROUND. The default joint is MITER.
Syntax
strokeJoin(join)
Parameters
join int: either MITER, BEVEL, ROUND
Returnsvoid
Relatedstroke()
strokeWeight()
strokeCap()
