Perspective vs Ortho

Move the mouse left to right to change the "far" parameter for the perspective() and ortho() functions. This parameter sets the maximum distance from the origin away from the viewer and will clip the geometry. Click a mouse button to switch between the perspective and orthographic projections.

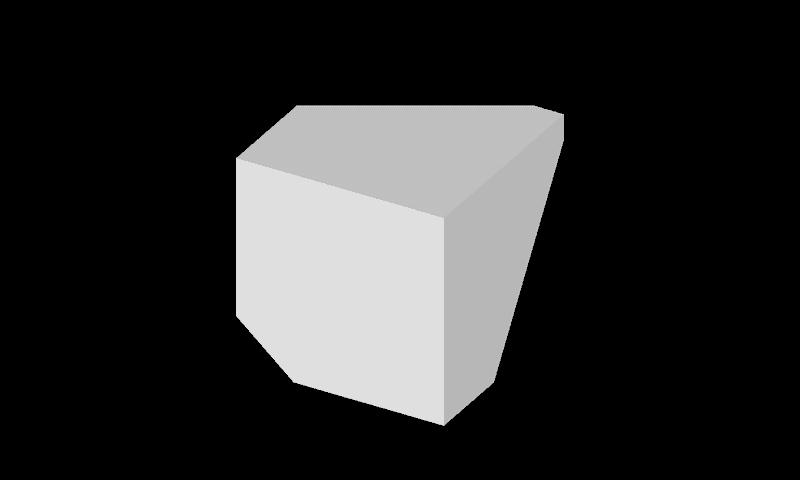

Visual output for the code example
/**
 * Perspective vs. Ortho
 *
 * Move the mouse left to right to change the "far"
 * parameter for the perspective() and ortho() functions.
 * This parameter sets the maximum distance from the
 * origin away from the viewer and will clip the geometry.
 * Click a mouse button to switch between the perspective and
 * orthographic projections.
 */


boolean showPerspective = false;

void setup() {
  size(600, 360, P3D);
  noFill();
  fill(255);
  noStroke();
}

void draw() {
  lights();
  background(0);
  float far = map(mouseX, 0, width, 120, 400);
  if (showPerspective == true) {
    perspective(PI/3.0, float(width)/float(height), 10, far);
  } else {
    ortho(-width/2.0, width/2.0, -height/2.0, height/2.0, 10, far);
  }
  translate(width/2, height/2, 0);
  rotateX(-PI/6);
  rotateY(PI/3);
  box(180);
}

void mousePressed() {
  showPerspective = !showPerspective;
}

Related Examples

This example is for Processing 4+. If you have a previous version, use the examples included with your software. If you see any errors or have suggestions, please let us know.
