Mixtureby Simon Greenwold

Display a box with three different kinds of lights.

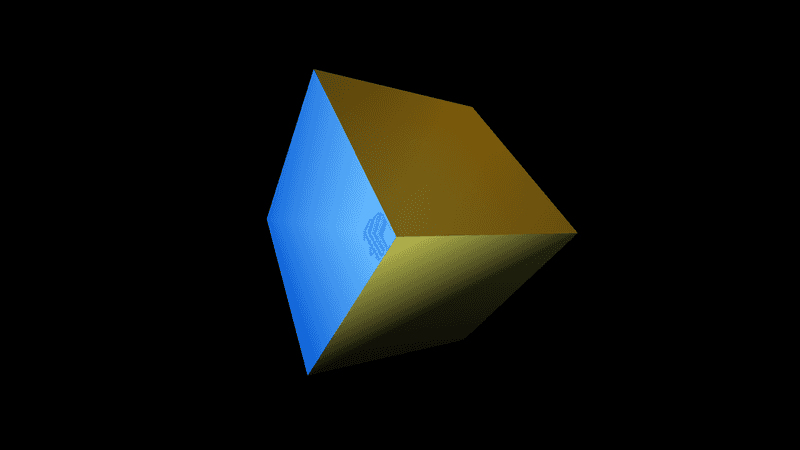

Visual output for the code example
/**
 * Mixture
 * by Simon Greenwold.
 *
 * Display a box with three different kinds of lights.
 */

void setup() {
  size(640, 360, P3D);
  noStroke();
}

void draw() {
  background(0);
  translate(width / 2, height / 2);

  // Orange point light on the right
  pointLight(150, 100, 0, // Color
             200, -150, 0); // Position

  // Blue directional light from the left
  directionalLight(0, 102, 255, // Color
                   1, 0, 0); // The x-, y-, z-axis direction

  // Yellow spotlight from the front
  spotLight(255, 255, 109, // Color
            0, 40, 200, // Position
            0, -0.5, -0.5, // Direction
            PI / 2, 2); // Angle, concentration

  rotateY(map(mouseX, 0, width, 0, PI));
  rotateX(map(mouseY, 0, height, 0, PI));
  box(150);
}

Related Examples

This example is for Processing 4+. If you have a previous version, use the examples included with your software. If you see any errors or have suggestions, please let us know.
