Name

bezierTangent()

Description

Calculates the tangent of a point on a Bézier curve. There is a good definition of tangent on Wikipedia.

Examples

  • size(400,400);
    noFill();
    bezier(340, 80, 40, 40, 360, 360, 60, 320);

    int steps = 6;
    fill(255);
    for (int i = 0; i <= steps; i++) {
      float t = i / float(steps);
      // Get the location of the point
      float x = bezierPoint(340, 40, 360, 60, t);
      float y = bezierPoint(80, 40, 360, 320, t);
      // Get the tangent points
      float tx = bezierTangent(340, 40, 360, 60, t);
      float ty = bezierTangent(80, 40, 360, 320, t);
      // Calculate an angle from the tangent points
      float a = atan2(ty, tx);
      a += PI;
      stroke(255, 102, 0);
      line(x, y, cos(a)*120 + x, sin(a)*120 + y);
      // The following line of code makes a line
      // inverse of the above line
      //line(x, y, cos(a)*-30 + x, sin(a)*-30 + y);
      stroke(0);
      ellipse(x, y, 10, 10);
    }

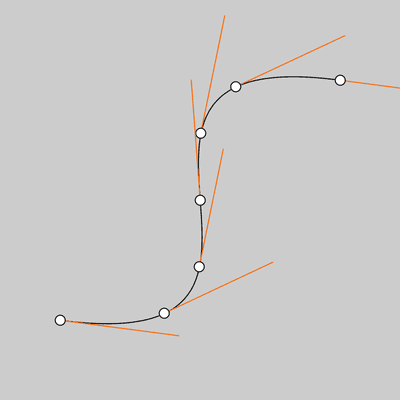

    Image output for example 1
  • size(400,400);

    noFill();
    bezier(340, 80, 40, 40, 360, 360, 60, 320);
    stroke(255, 102, 0);
    int steps = 16;
    for (int i = 0; i <= steps; i++) {
      float t = i / float(steps);
      float x = bezierPoint(340, 40, 360, 60, t);
      float y = bezierPoint(80, 40, 360, 320, t);
      float tx = bezierTangent(340, 40, 360, 60, t);
      float ty = bezierTangent(80, 40, 360, 320, t);
      float a = atan2(ty, tx);
      a -= HALF_PI;
      line(x, y, cos(a)*32 + x, sin(a)*32 + y);
    }

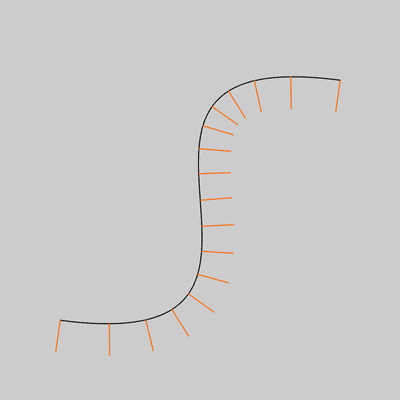

    Image output for example 2

Syntax

  • bezierTangent(a, b, c, d, t)

Parameters

  • a(float)coordinate of first point on the curve
  • b(float)coordinate of first control point
  • c(float)coordinate of second control point
  • d(float)coordinate of second point on the curve
  • t(float)value between 0 and 1

Return

  • float
